1768363 | Phoenix Contact

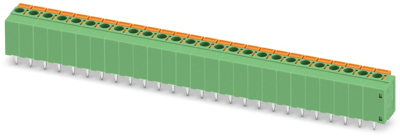

PCB terminal, 26 pole, pitch 5.08 mm, AWG 24-16, 15 A, spring-clamp connection, green, 1768363
Unit Price (€ / pc.)
18.1832 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.18 € *
Price list
Quantity
Price per unit*
1 pcs.
18.1832 €
10 pcs.
16.7195 €
50 pcs.
15.2201 €
100 pcs.
13.6969 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1768363, Phoenix Contact
PCB terminal block, nominal current: 15 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 26, number of rows: 1, number of positions per row: 26, pitch: 5.08 mm, connection method: push-in spring connection, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 3.4 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Colour | green | |
| AWG cross-section | AWG 24-16 | |
| Rated current | 15 A | |
| Grid | 5.08 mm | |
| Width | 134.58 mm | |
| Height | 17 mm | |
| Cable cross-section | 0.2-1.5 mm² | |
| Pin number | 26 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 320 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
