1766161 | Phoenix Contact
PCB terminal, 58 pole, pitch 5.08 mm, AWG 24-12, 22 A, screw connection, green, 1766161
Unit Price (€ / pc.)
41.6262 € *
Standard delivery time from the manufacturer is: On Request

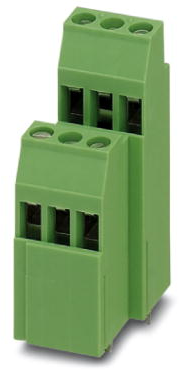

PCB terminal, 1766161, Phoenix Contact

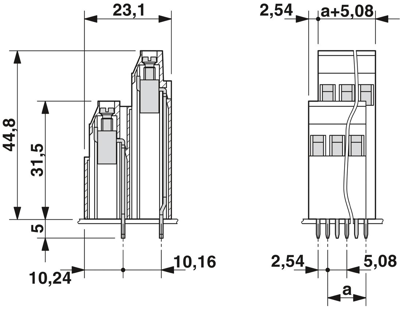

PCB terminal block, nominal current: 22 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 58, number of rows: 2, number of positions per row: 29, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Conductor connection on several levels enables higher contact density
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Width | 147.32 mm | |
| Connection | screw connection | |
| Pin number | 58 pole | |
| Cable cross-section | 0.2-4.0 mm² | |
| Height | 49.8 mm | |
| Assembly | THT | |
| Colour | green | |
| Rated current | 22 A | |
| Rated voltage | 400 V | |
| AWG cross-section | AWG 24-12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
