1760646 | Phoenix Contact

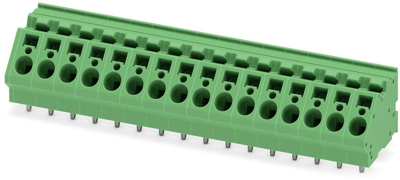

PCB terminal, 16 pole, pitch 7.5 mm, AWG 24-10, 32 A, spring-clamp connection, green, 1760646
Unit Price (€ / pc.)
12.5545 € *
Standard delivery time from the manufacturer is: 6 Weeks
PCB terminal, 1760646, Phoenix Contact
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², number of potentials: 16, number of rows: 1, number of positions per row: 16, pitch: 7.5 mm, connection method: spring-cage connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear double pinning, solder pin: 4.6 mm, number of solder pins per potential: 2.
Features
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Separate bridge shaft for easily connecting multiple positions to jumpers
- Quick and convenient testing using integrated test option
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.5 mm | |
| Connection | spring-clamp connection | |
| Height | 27.6 mm | |
| Assembly | THT | |
| Rated current | 32 A | |
| Colour | green | |
| Rated voltage | 630 V | |
| Cable cross-section | 0.2-6.0 mm² | |
| AWG cross-section | AWG 24-10 | |
| Pin number | 16 pole | |
| Width | 129 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
