1755554 | Phoenix Contact

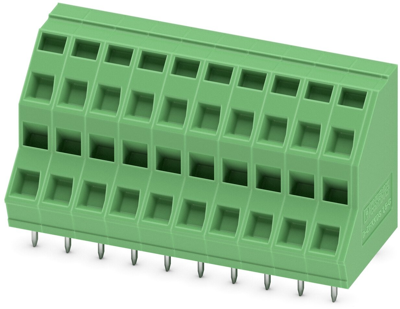

PCB terminal, 20 pole, pitch 5 mm, AWG 24-14, 16 A, spring-clamp connection, green, 1755554
Unit Price (€ / pc.)
7.3066 € *
Standard delivery time from the manufacturer is: 9 Weeks
PCB terminal, 1755554, Phoenix Contact
PCB terminal block, nominal current: 16 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 20, number of rows: 2, number of positions per row: 10, pitch: 5 mm, connection method: spring-cage connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear pinning, solder pin: 3.7 mm, number of solder pins per potential: 1.
Features
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Conductor connection on several levels enables higher contact density
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-14 | |
| Colour | green | |
| Connection | spring-clamp connection | |
| Rated voltage | 400 V | |
| Cable cross-section | 0.2-2.5 mm² | |
| Width | 50 mm | |
| Height | 29.7 mm | |
| Assembly | THT | |
| Pin number | 20 pole | |
| Grid | 5 mm | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
