1751578 | Phoenix Contact
PCB terminal, 9 pole, pitch 5.08 mm, AWG 24-16, 15 A, spring-clamp connection, green, 1751578
Unit Price (€ / pc.)
4.4982 € *
Available: 0 pcs.
Leadtime: On Request **

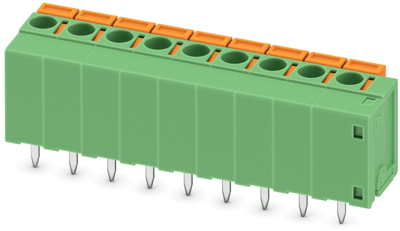

PCB terminal, 1751578, Phoenix Contact
PCB terminal block, nominal current: 15 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 9, number of rows: 1, number of positions per row: 9, pitch: 5.08 mm, connection method: push-in spring connection, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 3.4 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Colour | green | |
| AWG cross-section | AWG 24-16 | |
| Rated current | 15 A | |
| Grid | 5.08 mm | |
| Width | 48.22 mm | |
| Height | 17 mm | |
| Cable cross-section | 0.2-1.5 mm² | |
| Pin number | 9 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 320 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
