1751468 | Phoenix Contact

PCB terminal, 18 pole, pitch 3.5 mm, AWG 26-16, 8 A, screw connection, green, 1751468

Order No.: 63P4955
EAN: 4017918115852
MPN:
1751468
MKKDS 1/ 9-3,5
Series: MKKDS

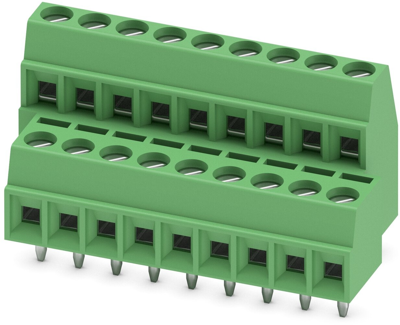

1751468 Phoenix Contact PCB Terminal Blocks Image 1
1751468 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
7.1638 € *
Available in 5 Days: 47 pcs. - if ordered today
Total Price:
7.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.1638 €

PCB terminal, 1751468, Phoenix Contact

PCB terminal block, nominal current: 8 A, rated voltage (III/2): 200 V, nominal cross section: 1 mm², number of potentials: 18, number of rows: 2, number of positions per row: 9, pitch: 3.5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Extremely small design for the respective conductor cross section
  • Conductor connection on several levels enables higher contact density
Technical specifications
Filter Property Value
Pin number 18 pole
Rated voltage 200 V
AWG cross-section AWG 26-16
Connection screw connection
Width 33.75 mm
Cable cross-section 0.14-1.5 mm²
Rated current 8 A
Assembly THT
Height 19.7 mm
Colour green
Grid 3.5 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
