1744455 | Phoenix Contact
PCB terminal, 24 pole, pitch 5 mm, AWG 24-14, 24 A, spring-clamp connection, green, 1744455
Unit Price (€ / pc.)
10.5315 € *
Available: 0 pcs.
Leadtime: On Request **

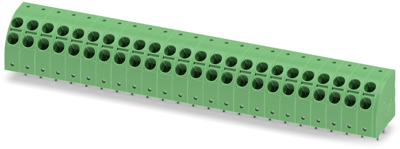

PCB terminal, 1744455, Phoenix Contact
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 24, number of rows: 1, number of positions per row: 24, pitch: 5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear double pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Potentials can be easily looped through with additional connection to the PCB
- Quick and convenient testing using integrated test option
- Two solder pins reduce the mechanical strain on the soldering spots

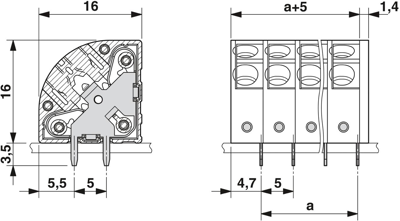

Technical specifications
| Colour | green | |
| AWG cross-section | AWG 24-14 | |
| Rated current | 24 A | |
| Grid | 5 mm | |
| Width | 121.4 mm | |
| Height | 19.5 mm | |
| Cable cross-section | 0.2-2.5 mm² | |
| Pin number | 24 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 400 V |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
