1743498 | Phoenix Contact

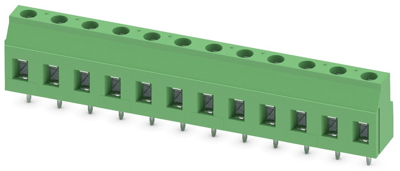

PCB terminal, 12 pole, pitch 7.62 mm, AWG 24-12, 24 A, screw connection, green, 1743498
Order No.: 63P0371
EAN: 4046356304528
MPN:
1743498
GMKDS 3/12-7,62
Unit Price (€ / pc.)
7.0448 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
PCB terminal, 1743498, Phoenix Contact

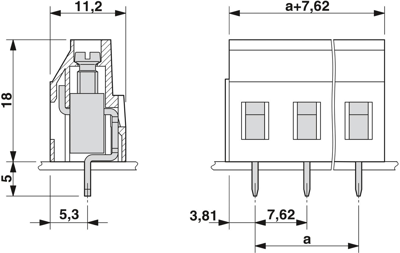

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 630 V, nominal cross section: 2.5 mm², number of potentials: 12, number of rows: 1, number of positions per row: 12, pitch: 7.62 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Larger pitch for increased voltage requirements
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 24-12 | |
| Width | 91.44 mm | |
| Colour | green | |
| Height | 23 mm | |
| Cable cross-section | 0.2-4.0 mm² | |
| Rated voltage | 630 V | |
| Rated current | 24 A | |
| Pin number | 12 pole | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
