1737695 | Phoenix Contact

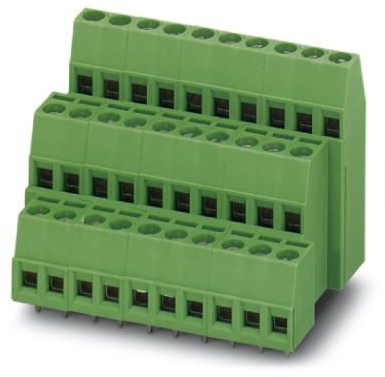

PCB terminal, 21 pole, pitch 5.08 mm, AWG 26-14, 15 A, screw connection, green, 1737695
Unit Price (€ / pc.)
12.6140 € *
Standard delivery time from the manufacturer is: 7 Weeks
PCB terminal, 1737695, Phoenix Contact
PCB terminal block, nominal current: 15 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 21, number of rows: 3, number of positions per row: 7, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Conductor connection on several levels enables higher contact density
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Width | 38.1 mm | |
| Connection | screw connection | |
| Pin number | 21 pole | |
| Cable cross-section | 0.14-2.5 mm² | |
| Height | 40.1 mm | |
| Assembly | THT | |
| Colour | green | |
| Rated current | 15 A | |
| Rated voltage | 400 V | |
| AWG cross-section | AWG 26-14 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
