1736793 | Phoenix Contact

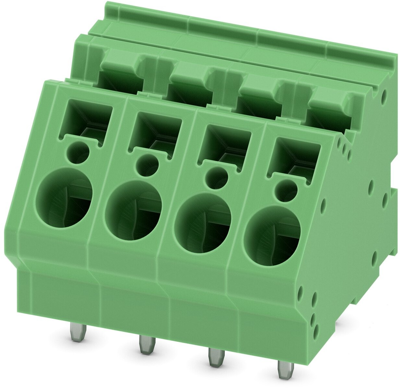

PCB terminal, 4 pole, pitch 7.5 mm, AWG 24-10, 32 A, spring-clamp connection, green, 1736793
Order No.: 64P0680
EAN: 4046356182003
MPN:
1736793
ZFKDSA 4-7,5- 4
Unit Price (€ / pc.)
4.9147 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.91 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9147 €
10 pcs.
4.4268 €
100 pcs.
3.7604 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1736793, Phoenix Contact
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 7.5 mm, connection method: spring-cage connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear double pinning, solder pin: 4.6 mm, number of solder pins per potential: 2.
Features
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Separate bridge shaft for easily connecting multiple positions to jumpers
- Quick and convenient testing using integrated test option
Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 24-10 | |
| Width | 31.5 mm | |
| Colour | green | |
| Height | 27.6 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Rated voltage | 630 V | |
| Rated current | 32 A | |
| Pin number | 4 pole | |
| Grid | 7.5 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
