1735930 | Phoenix Contact
PCB terminal, 8 pole, pitch 10 mm, AWG 20-4, 76 A, spring-clamp connection, green, 1735930
Unit Price (€ / pc.)
17.1717 € *
Standard delivery time from the manufacturer is: 11 Weeks

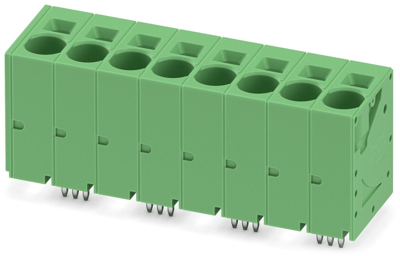

PCB terminal, 1735930, Phoenix Contact

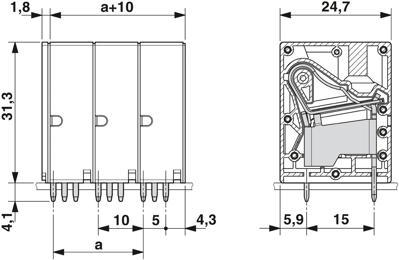

PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm², number of potentials: 8, number of rows: 1, number of positions per row: 8, pitch: 10 mm, connection method: push-in spring connection, conductor/PCB connection direction: 90 °, color: green, pin layout: Zigzag pinning W, solder pin: 4.1 mm, number of solder pins per potential: 3.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Vertical connection enables multi-row arrangement on the PCB
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-4 | |
| Rated current | 76 A | |
| Height | 35.4 mm | |
| Colour | green | |
| Assembly | THT | |
| Width | 81.8 mm | |
| Grid | 10 mm | |
| Rated voltage | 1 kV | |
| Connection | spring-clamp connection | |
| Pin number | 8 pole | |
| Cable cross-section | 0.75-16 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | BG |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
