1735422 | Phoenix Contact

PCB terminal, 12 pole, pitch 10 mm, AWG 24-10, 32 A, spring-clamp connection, green, 1735422

Order No.: 64P0677
EAN: 4046356177085
MPN:
1735422
ZFKDSA 4-10-12
Series: ZFKDSA

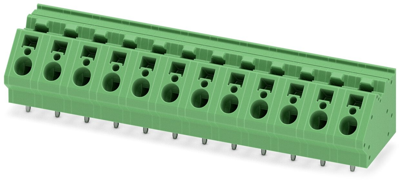

1735422 Phoenix Contact PCB Terminal Blocks Image 1

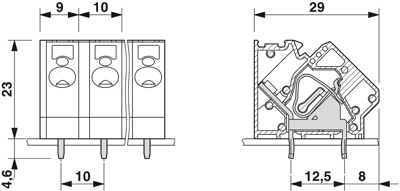

1735422 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
14.3038 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
14.30 € *
Price list
Quantity
Price per unit*
1 pcs.
14.3038 €
10 pcs.
13.1614 €
50 pcs.
11.9833 €
100 pcs.
10.7814 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1735422, Phoenix Contact

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², number of potentials: 12, number of rows: 1, number of positions per row: 12, pitch: 10 mm, connection method: spring-cage connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear pinning, solder pin: 4.6 mm, number of solder pins per potential: 2.

Features

  • Defined contact force ensures that contact remains stable over the long term
  • Clamping space opened by means of fixed screwdriver enables convenient conductor connection
  • Separate bridge shaft for easily connecting multiple positions to jumpers
  • Quick and convenient testing using integrated test option
Technical specifications
Filter Property Value
Grid 10 mm
Connection spring-clamp connection
Height 27.6 mm
Assembly THT
Rated current 32 A
Colour green
Rated voltage 630 V
Cable cross-section 0.2-6.0 mm²
AWG cross-section AWG 24-10
Pin number 12 pole
Width 121.5 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
