1733732 | Phoenix Contact

PCB terminal, 3 pole, pitch 7.62 mm, AWG 24-12, 24 A, screw connection, green, 1733732

Order No.: 63P0869
EAN: 4017918026783
MPN:
1733732
GSMKDS 3/ 3-7,62
Series: GSMKDS

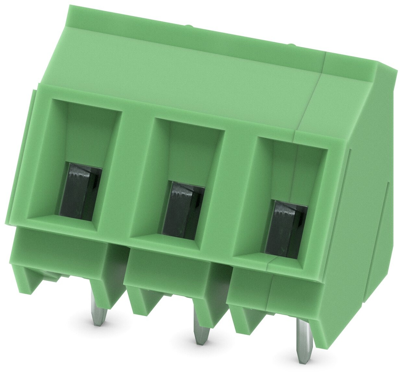

1733732 Phoenix Contact PCB Terminal Blocks Image 1
1733732 Phoenix Contact PCB Terminal Blocks Image 2

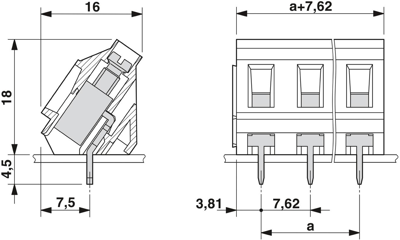

1733732 Phoenix Contact PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
2.1539 € *
Available in 10 days: 6,943 pcs. - if ordered today
Total Price:
2.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.1539 €

PCB terminal, 1733732, Phoenix Contact

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 630 V, nominal cross section: 2.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, pitch: 7.62 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 55 °, color: green, pin layout: linear pinning, solder pin: 4.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Angled connection enables multi-row arrangement on the PCB
  • Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Filter Property Value
Grid 7.62 mm
Connection screw connection
Height 22.5 mm
Assembly THT
Rated current 24 A
Colour green
Rated voltage 630 V
Cable cross-section 0.2-4.0 mm²
AWG cross-section AWG 24-12
Pin number 3 pole
Width 22.86 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
