1733729 | Phoenix Contact

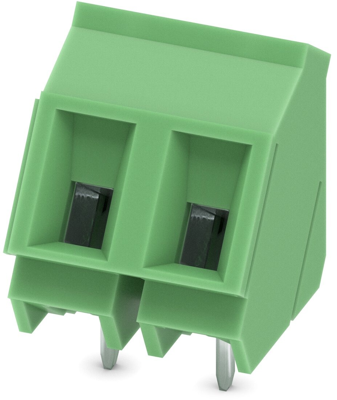

PCB terminal, 2 pole, pitch 7.62 mm, AWG 26-14, 24 A, screw connection, green, 1733729
Unit Price (€ / pc.)
1.9516 € *
Available in 10 days: 16,532 pcs. - if ordered today
Total Price:
1.95 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9516 €
10 pcs.
1.7969 €
50 pcs.
1.6303 €
100 pcs.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1733729, Phoenix Contact

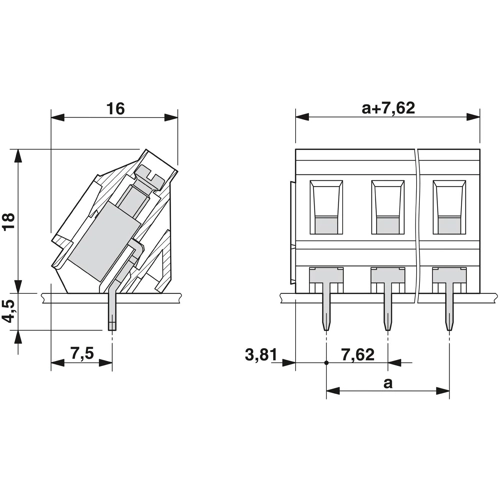

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 630 V, nominal cross section: 2.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 7.62 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 55 °, color: green, pin layout: linear pinning, solder pin: 4.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Angled connection enables multi-row arrangement on the PCB
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve

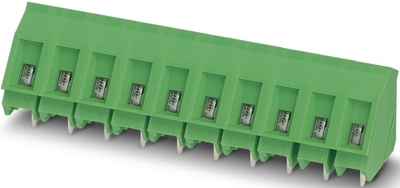

- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 630 V | |
| Assembly | THT | |
| Height | 22.5 mm | |
| Pin number | 2 pole | |
| Colour | green | |
| Width | 15.24 mm | |
| Grid | 7.62 mm | |
| Rated current | 24 A | |
| AWG cross-section | AWG 26-14 | |
| Connection | screw connection | |
| Cable cross-section | 0.2-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
