1733619 | Phoenix Contact
PCB terminal, 6 pole, pitch 5.08 mm, AWG 26-14, 17.5 A, screw connection, green, 1733619
Unit Price (€ / pc.)
3.3558 € *
Available: 0 pcs.
Available in 10 days: 2,250 pcs.
Leadtime: 2 Weeks **
Total Price:
3.36 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3558 €
10 pcs.
3.0940 €
50 pcs.
2.8084 €
100 pcs.
2.5228 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1733619, Phoenix Contact
PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 6, number of rows: 1, number of positions per row: 6, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 55 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Angled connection enables multi-row arrangement on the PCB
- Quick and convenient testing using integrated test option
- The latching on the side enables various numbers of positions to be combined

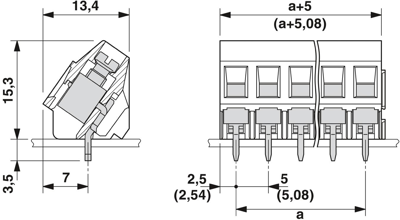

Technical specifications
| Colour | green | |
| AWG cross-section | AWG 26-14 | |
| Rated current | 17.5 A | |
| Grid | 5.08 mm | |
| Width | 30.48 mm | |
| Height | 18.8 mm | |
| Cable cross-section | 0.14-2.5 mm² | |
| Pin number | 6 pole | |
| Connection | screw connection | |
| Rated voltage | 400 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
