1733020 | Phoenix Contact
PCB terminal, 2 pole, pitch 7.5 mm, AWG 24-12, 24 A, screw connection, green, 1733020
Order No.: 63P0859
EAN: 4017918026486
MPN:
1733020
GSMKDS 3/ 2
Unit Price (€ / pc.)
2.0825 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
2.08 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0825 €
10 pcs.
1.8921 €
100 pcs.
1.5946 €
*incl. VAT plus shipping costs
**Subject to prior sale

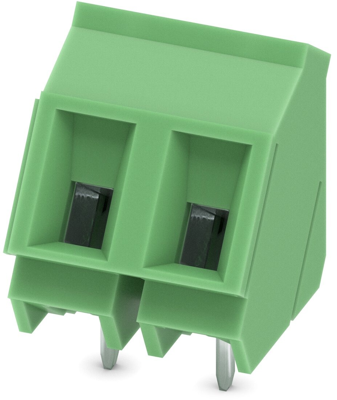

PCB terminal, 1733020, Phoenix Contact

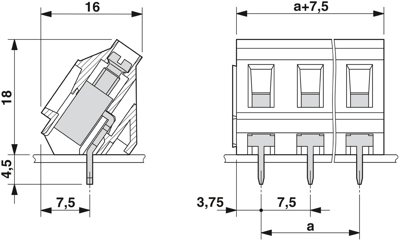

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 630 V, nominal cross section: 2.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 7.5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 55 °, color: green, pin layout: linear pinning, solder pin: 4.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors

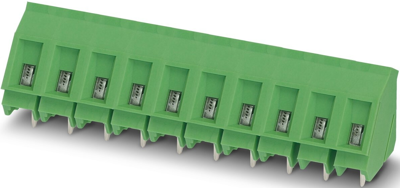

- Angled connection enables multi-row arrangement on the PCB
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 24-12 | |
| Width | 15 mm | |
| Colour | green | |
| Height | 22.5 mm | |
| Cable cross-section | 0.2-4.0 mm² | |
| Rated voltage | 630 V | |
| Rated current | 24 A | |
| Pin number | 2 pole | |
| Grid | 7.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
