1732720 | Phoenix Contact

PCB terminal, 2 pole, pitch 7.62 mm, AWG 24-12, 24 A, screw connection, green, 1732720

Order No.: 63P0387
EAN: 4017918026448
MPN:
1732720
GMKDSP 3/ 2-7,62
Series: GMKDSP

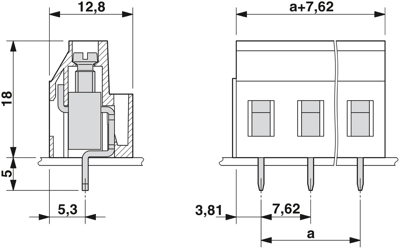

1732720 Phoenix Contact PCB Terminal Blocks Image 1

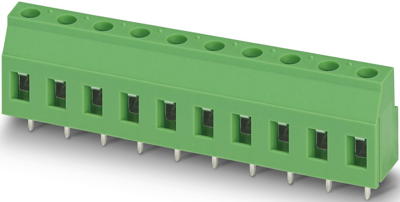

1732720 Phoenix Contact PCB Terminal Blocks Image 2

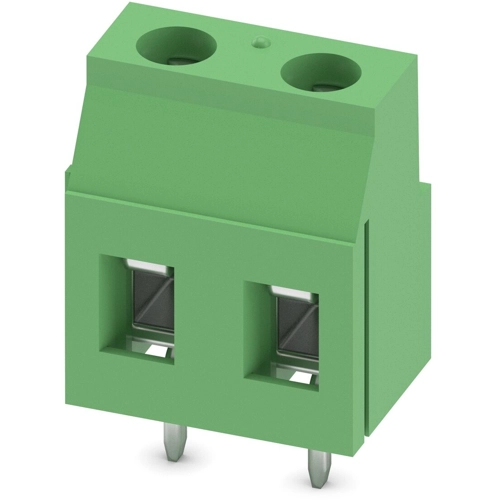

1732720 Phoenix Contact PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
2.1539 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.15 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1539 €
10 pcs.
1.9754 €
50 pcs.
1.8088 €
100 pcs.
1.6184 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1732720, Phoenix Contact

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 630 V, nominal cross section: 2.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 7.62 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Larger pitch for increased voltage requirements
  • Quick and convenient testing using integrated test option
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Filter Property Value
Pin number 2 pole
Cable cross-section 0.2-4.0 mm²
Colour green
Rated current 24 A
Width 15.24 mm
Connection screw connection
Height 23 mm
Rated voltage 630 V
AWG cross-section AWG 24-12
Grid 7.62 mm
Assembly THT
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
