1732386 | Phoenix Contact

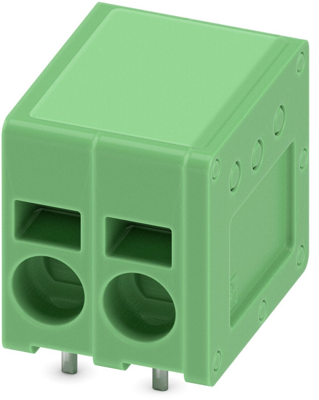

PCB terminal, 2 pole, pitch 5 mm, AWG 24-14, 23 A, spring-clamp connection, green, 1732386
Unit Price (€ / pc.)
1.6660 € *
Available: 0 pcs.
Available in 10 days: 10,900 pcs.
Leadtime: 2 Weeks **
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
10 pcs.
1.5470 €
50 pcs.
1.4042 €
100 pcs.
1.2614 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1732386, Phoenix Contact
PCB terminal block, nominal current: 23 A, nominal cross section: 2.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear double pinning, solder pin: 2.5 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Operation and conductor connection from one direction enable integration into front of device
- Two solder pins reduce the mechanical strain on the soldering spots
Technical specifications
| AWG cross-section | AWG 24-14 | |
| Grid | 5 mm | |
| Cable cross-section | 0.2-4.0 mm² | |
| Rated current | 23 A | |
| Colour | green | |
| Height | 16 mm | |
| Rated voltage | 176 V | |
| Connection | spring-clamp connection | |
| Pin number | 2 pole | |
| Width | 11.4 mm |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
