1730476 | Phoenix Contact
PCB terminal, 10 pole, pitch 5.08 mm, AWG 26-14, 24 A, screw connection, green, 1730476
Order No.: 63P4311
EAN: 4017918116187
MPN:
1730476
MKDS 2,5/10-5,08
Unit Price (€ / pc.)
5.0694 € *
Available: 0 pcs.
Leadtime: On Request **

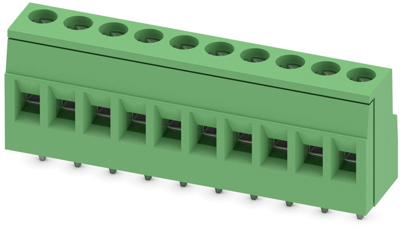

PCB terminal, 1730476, Phoenix Contact
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.7 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve

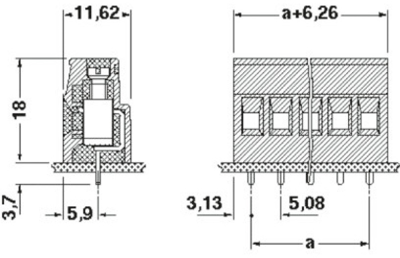

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-14 | |
| Width | 51.98 mm | |
| Colour | green | |
| Height | 21.7 mm | |
| Cable cross-section | 0.14-2.5 mm² | |
| Rated voltage | 400 V | |
| Rated current | 24 A | |
| Pin number | 10 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
