1730395 | Phoenix Contact

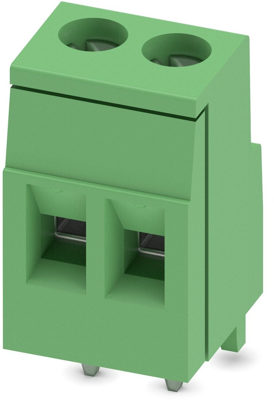

PCB terminal, 2 pole, pitch 5.08 mm, AWG 26-14, 24 A, screw connection, green, 1730395
Unit Price (€ / pc.)
1.5470 € *
Available in 10 days: 1,950 pcs. - if ordered today
Total Price:
1.55 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5470 €
10 pcs.
1.4280 €
50 pcs.
1.2852 €
100 pcs.
1.1662 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1730395, Phoenix Contact

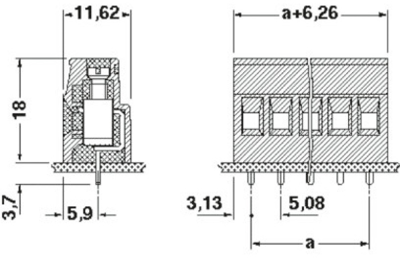

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.7 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
Technical specifications
| Height | 21.7 mm | |
| Grid | 5.08 mm | |
| Pin number | 2 pole | |
| Connection | screw connection | |
| Colour | green | |
| Rated current | 24 A | |
| Cable cross-section | 0.14-2.5 mm² | |
| Width | 11.34 mm | |
| Rated voltage | 400 V | |
| AWG cross-section | AWG 26-14 |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
