1729209 | Phoenix Contact
PCB terminal, 10 pole, pitch 5.08 mm, AWG 26-16, 13.5 A, screw connection, green, 1729209
Unit Price (€ / pc.)
4.4149 € *
Available in 10 days: 1,000 pcs. - if ordered today
Total Price:
4.41 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4149 €
10 pcs.
3.9865 €
100 pcs.
3.3915 €
*incl. VAT plus shipping costs
Subject to prior sale

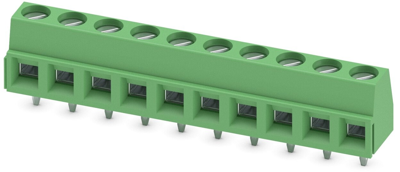

PCB terminal, 1729209, Phoenix Contact
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
- The latching on the side enables various numbers of positions to be combined

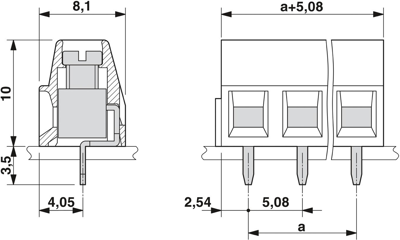

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 13.5 mm | |
| Rated voltage | 400 V | |
| Width | 50.8 mm | |
| Rated current | 13.5 A | |
| Grid | 5.08 mm | |
| Connection | screw connection | |
| AWG cross-section | AWG 26-16 | |
| Assembly | THT | |
| Colour | green | |
| Cable cross-section | 0.14-1.5 mm² | |
| Pin number | 10 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
