1728323 | Phoenix Contact

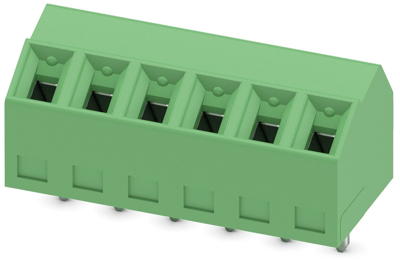

PCB terminal, 6 pole, pitch 3.81 mm, AWG 26-16, 10 A, screw connection, green, 1728323
Unit Price (€ / pc.)
2.38 € *
Available: 0 pcs.
Available in 10 days: 3,000 pcs.
Leadtime: 2 Weeks **
PCB terminal, 1728323, Phoenix Contact

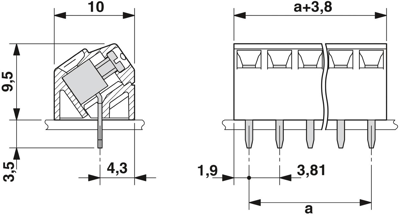

PCB terminal block, nominal current: 10 A, rated voltage (III/2): 200 V, nominal cross section: 1 mm², number of potentials: 6, number of rows: 1, number of positions per row: 6, pitch: 3.81 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 35 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Angled connection enables multi-row arrangement on the PCB
- Extremely small design for the respective conductor cross section
Technical specifications
| Colour | green | |
| AWG cross-section | AWG 26-16 | |
| Rated current | 10 A | |
| Grid | 3.81 mm | |
| Width | 22.85 mm | |
| Height | 13 mm | |
| Cable cross-section | 0.14-1.5 mm² | |
| Pin number | 6 pole | |
| Connection | screw connection | |
| Rated voltage | 200 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
