1727324 | Phoenix Contact
PCB terminal, 12 pole, pitch 3.81 mm, AWG 26-16, 8 A, screw connection, black, 1727324
Unit Price (€ / pc.)
11.2217 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
11.22 € *
Price list
Quantity
Price per unit*
1 pcs.
11.2217 €
10 pcs.
10.3173 €
50 pcs.
9.3891 €
100 pcs.
8.4490 €
*incl. VAT plus shipping costs
Subject to prior sale

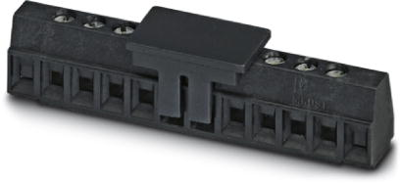

PCB terminal, 1727324, Phoenix Contact
PCB terminal block, nominal current: 8 A, rated voltage (III/2): 160 V, nominal cross section: 1 mm², number of potentials: 12, number of rows: 1, number of positions per row: 12, pitch: 3.81 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: black, pin layout: linear pad geometry, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
- Designed for integration into the SMT soldering process

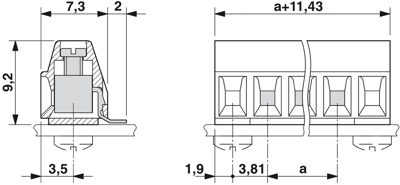

Technical specifications
| Colour | black | |
| AWG cross-section | AWG 26-16 | |
| Rated current | 8 A | |
| Grid | 3.81 mm | |
| Width | 53.34 mm | |
| Height | 9.2 mm | |
| Cable cross-section | 0.14-1.5 mm² | |
| Pin number | 12 pole | |
| Connection | screw connection | |
| Rated voltage | 160 V |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
