1727036 | Phoenix Contact

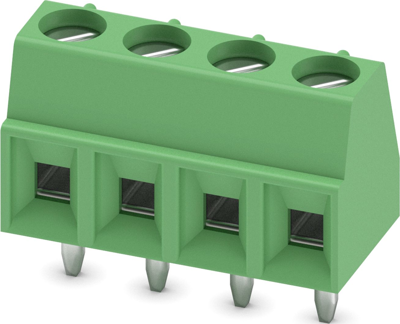

PCB terminal, 4 pole, pitch 3.81 mm, AWG 26-16, 17.5 A, screw connection, green, 1727036
Unit Price (€ / pc.)
1.9040 € *
Available in 5 Days: 11,704 pcs. - if ordered today
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9040 €
10 pcs.
1.7612 €
50 pcs.
1.6303 €
100 pcs.
1.5232 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal blocks, 1727036, Phoenix Contact
Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: MKDS 1, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, Suitable for CAT5.
Features
- Satisfies CAT5 requirements in accordance with EN 50173 and ISO/IEC 11801
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.14-1.5 mm² | |
| Depth | 7.3 mm | |
| Height | 12 mm | |
| Connection | screw connection | |
| Colour | green | |
| Assembly | THT | |
| Rated current | 17.5 A | |
| Width | 15.23 mm | |
| Pin number | 4 pole | |
| Grid | 3.81 mm | |
| Rated voltage | 200 V | |
| AWG cross-section | AWG 26-16 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
