1726189 | Phoenix Contact
PCB terminal, 12 pole, pitch 5.08 mm, AWG 26-16, 13.5 A, screw connection, green, 1726189
Unit Price (€ / pc.)
4.1174 € *
Available in 5 Days: 36,200 pcs. - if ordered today
PCB terminal, 1726189, Phoenix Contact

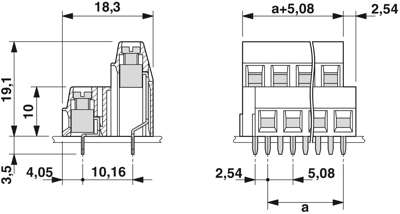

PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 12, number of rows: 2, number of positions per row: 6, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
- Conductor connection on several levels enables higher contact density
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Pin number | 12 pole | |
| Height | 22.6 mm | |
| Colour | green | |
| Rated current | 13.5 A | |
| Cable cross-section | 0.14-1.5 mm² | |
| Connection | screw connection | |
| Assembly | THT | |
| AWG cross-section | AWG 26-16 | |
| Rated voltage | 400 V | |
| Width | 33.02 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
