1726040 | Phoenix Contact
PCB terminal, 4 pole, pitch 12.7 mm, AWG 26-16, 13.5 A, screw connection, green, 1726040
Order No.: 63P5005
EAN: 4017918025359
MPN:
1726040
MKKDSN 1,5/ 2-5,08
Unit Price (€ / pc.)
1.3685 € *
Available: 230 pcs.
Leadtime: 2 Weeks **
PCB terminal, 1726040, Phoenix Contact
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 4, number of rows: 2, number of positions per row: 2, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
- Conductor connection on several levels enables higher contact density
- The latching on the side enables various numbers of positions to be combined

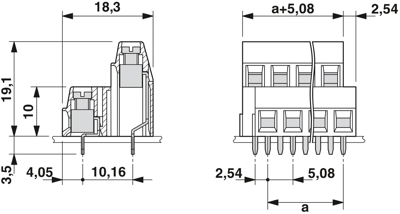

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-16 | |
| Width | 12.7 mm | |
| Colour | green | |
| Height | 22.6 mm | |
| Cable cross-section | 0.14-1.5 mm² | |
| Rated voltage | 400 V | |
| Rated current | 13.5 A | |
| Pin number | 4 pole | |
| Grid | 12.7 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
