1725724 | Phoenix Contact

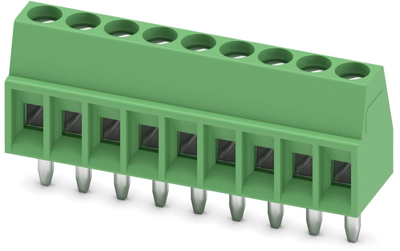

PCB terminal, 9 pole, pitch 2.54 mm, AWG 26-20, 6 A, screw connection, green, 1725724
Unit Price (€ / pc.)
3.1178 € *
Standard delivery time from the manufacturer is: 1 Week
PCB terminal, 1725724, Phoenix Contact

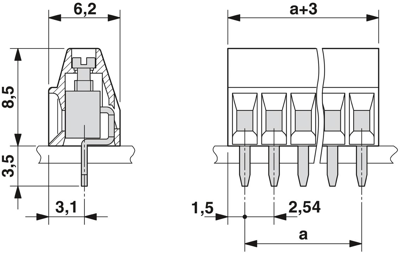

PCB terminal block, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm², number of potentials: 9, number of rows: 1, number of positions per row: 9, pitch: 2.54 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 6 A | |
| AWG cross-section | AWG 26-20 | |
| Width | 23.32 mm | |
| Connection | screw connection | |
| Grid | 2.54 mm | |
| Pin number | 9 pole | |
| Rated voltage | 160 V | |
| Height | 12 mm | |
| Colour | green | |
| Cable cross-section | 0.14-0.5 mm² | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
