1725698 | Phoenix Contact

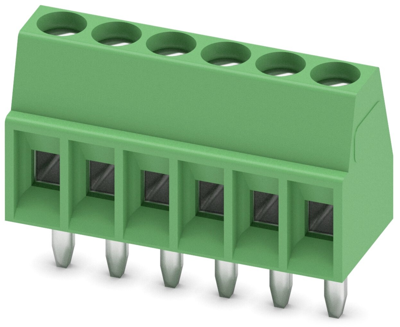

PCB terminal, 6 pole, pitch 2.54 mm, AWG 26-20, 6 A, screw connection, green, 1725698
Unit Price (€ / pc.)
2.6775 € *
Available: 33 pcs.
Available in 5 Days: 9,000 pcs. - if ordered today
Total Price:
2.68 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6775 €
10 pcs.
2.3681 €
100 pcs.
2.0825 €
250 pcs.
2.0111 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1725698, Phoenix Contact

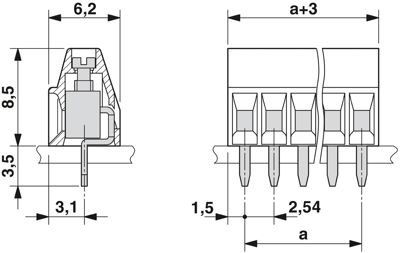

PCB terminal block, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm², number of potentials: 6, number of rows: 1, number of positions per row: 6, pitch: 2.54 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26-20 | |
| Rated current | 6 A | |
| Height | 12 mm | |
| Colour | green | |
| Assembly | THT | |
| Width | 15.7 mm | |
| Grid | 2.54 mm | |
| Rated voltage | 160 V | |
| Connection | screw connection | |
| Pin number | 6 pole | |
| Cable cross-section | 0.14-0.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
