1724673 | Phoenix Contact

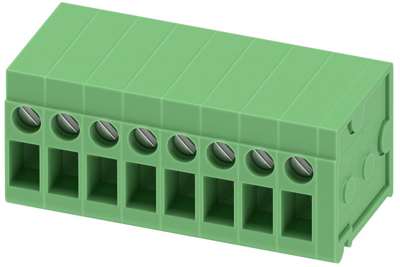

PCB terminal, 8 pole, pitch 5 mm, AWG 24-14, 24 A, screw connection, green, 1724673
Unit Price (€ / pc.)
11.8167 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
11.82 € *
Price list
Quantity
Price per unit*
1 pcs.
11.8167 €
10 pcs.
10.8766 €
50 pcs.
9.9008 €
100 pcs.
8.9131 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1724673, Phoenix Contact
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 8, number of rows: 1, number of positions per row: 8, pitch: 5 mm, connection method: front screw connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear double pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Operation and conductor connection from one direction enable integration into front of device
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-14 | |
| Colour | green | |
| Connection | screw connection | |
| Rated voltage | 400 V | |
| Cable cross-section | 0.2-2.5 mm² | |
| Width | 42.5 mm | |
| Height | 22.1 mm | |
| Assembly | THT | |
| Pin number | 8 pole | |
| Grid | 5 mm | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
