1721346 | Phoenix Contact

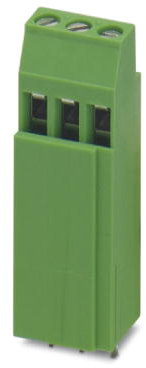

PCB terminal, 3 pole, pitch 5 mm, AWG 24-12, 24 A, screw connection, green, 1721346
Unit Price (€ / pc.)
3.2011 € *
Available in 10 days: 3,400 pcs. - if ordered today
Total Price:
3.20 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2011 €
10 pcs.
2.9512 €
50 pcs.
2.6775 €
100 pcs.
2.4157 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1721346, Phoenix Contact
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, pitch: 5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Conductor connection on several levels enables higher contact density
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve

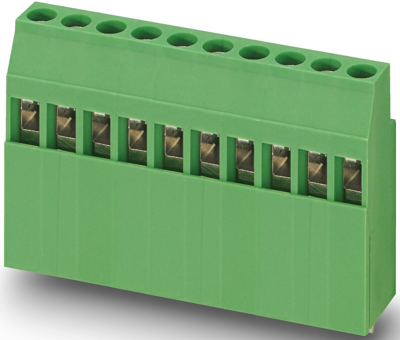

- The latching on the side enables various numbers of positions to be combined

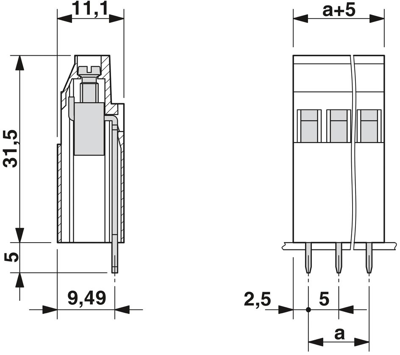

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 36.5 mm | |
| Rated voltage | 400 V | |
| AWG cross-section | AWG 24-12 | |
| Width | 15 mm | |
| Cable cross-section | 0.2-4.0 mm² | |
| Pin number | 3 pole | |
| Connection | screw connection | |
| Colour | green | |
| Grid | 5 mm | |
| Assembly | THT | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
