1721087 | Phoenix Contact
PCB terminal, 6 pole, pitch 5 mm, AWG 24-12, 17.5 A, screw connection, green, 1721087
Unit Price (€ / pc.)
4.7719 € *
Available: 0 pcs.
Available in 10 days: 600 pcs.
Leadtime: 2 Weeks **
Total Price:
4.77 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7719 €
10 pcs.
4.3911 €
50 pcs.
3.9984 €
100 pcs.
3.6057 €
*incl. VAT plus shipping costs
**Subject to prior sale

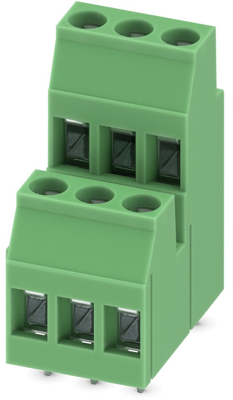

PCB terminal, 1721087, Phoenix Contact

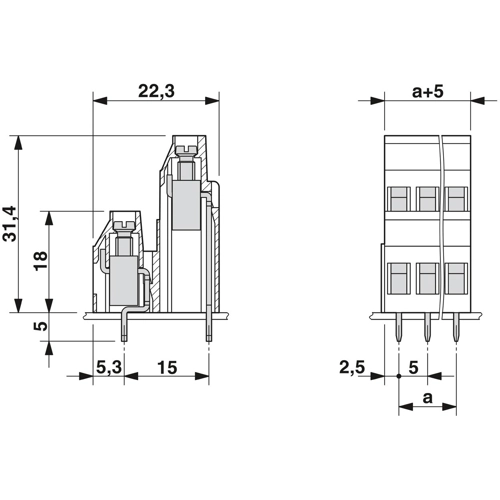

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 6, number of rows: 2, number of positions per row: 3, pitch: 5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Conductor connection on several levels enables higher contact density
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve

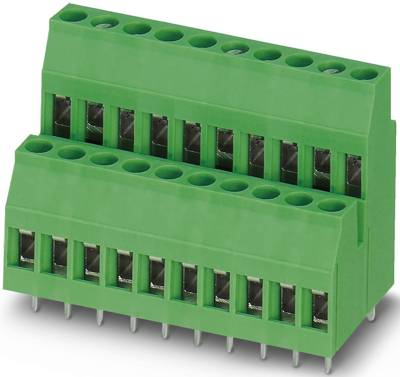

- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | Schraubanschluss | |
| AWG cross-section | AWG 24-12 | |
| Width | 15 mm | |
| Colour | grün | |
| Height | 36.4 mm | |
| Cable cross-section | 0,2-4,0 mm² | |
| Rated voltage | 400 V | |
| Rated current | 17.5 A | |
| Pin number | 6-polig | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
