1719260 | Phoenix Contact

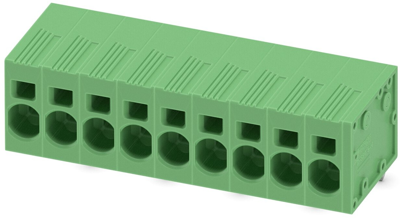

PCB terminal, 9 pole, pitch 7.5 mm, AWG 24-8, 41 A, spring-clamp connection, green, 1719260
Unit Price (€ / pc.)
9.1749 € *
Standard delivery time from the manufacturer is: 10 Weeks
PCB terminal, 1719260, Phoenix Contact

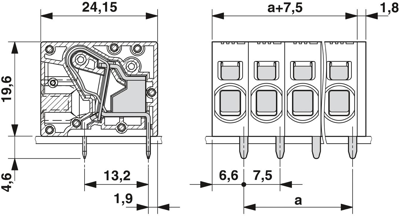

PCB terminal block, nominal current: 41 A, rated voltage (III/2): 1000 V, nominal cross section: 6 mm², number of potentials: 9, number of rows: 1, number of positions per row: 9, pitch: 7.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: green, pin layout: Zigzag pinning W, solder pin: 4.6 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Operation and conductor connection from one direction enable integration into front of device
Technical specifications
Filter | Property | Value |
---|---|---|
Height | 19 mm | |
Rated voltage | 1 kV | |
Width | 69.3 mm | |
Rated current | 41 A | |
Grid | 7.5 mm | |
Connection | spring-clamp connection | |
AWG cross-section | AWG 24-8 | |
Assembly | THT | |
Colour | green | |
Cable cross-section | 0.2-10 mm² | |
Pin number | 9 pole |
Download
Logistics
Property | Value |
---|---|
Country of origin | BG |
Customs tariff number | 85369010 |
Compliance
Property | Value |
---|---|
SVHC free | Yes |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
