1718689 | Phoenix Contact

PCB terminal, 10 pole, pitch 7.62 mm, AWG 26-16, 16 A, screw connection, green, 1718689

Order No.: 63P0880
EAN: 4017918024901
MPN:
1718689
GSMKDSN 1,5/10-7,62
Series: GSMKDSN

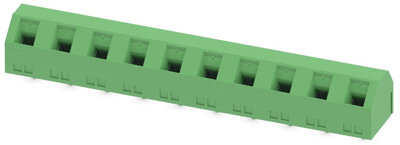

1718689 Phoenix Contact PCB Terminal Blocks Image 1

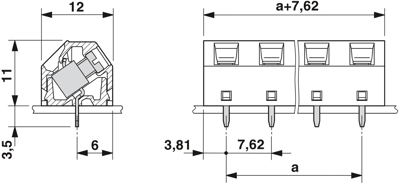

1718689 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
4.0936 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
4.09 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.0936 €

PCB terminal, 1718689, Phoenix Contact

PCB terminal block, nominal current: 16 A, rated voltage (III/2): 630 V, nominal cross section: 1.5 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, pitch: 7.62 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 45 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Angled connection enables multi-row arrangement on the PCB
  • Larger pitch for increased voltage requirements
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Filter Property Value
Grid 7.62 mm
Connection screw connection
Height 14.5 mm
Assembly THT
Rated current 16 A
Colour green
Rated voltage 630 V
Cable cross-section 0.14-1.5 mm²
AWG cross-section AWG 26-16
Pin number 10 pole
Width 76.2 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
