1717732 | Phoenix Contact
PCB terminal, 3 pole, pitch 7.62 mm, AWG 26-16, 17.5 A, screw connection, green, 1717732
Unit Price (€ / pc.)
1.7255 € *
Available in 10 days: 6,150 pcs. - if ordered today

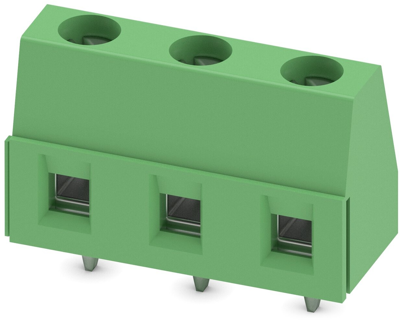

PCB terminal, 1717732, Phoenix Contact
PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 630 V, nominal cross section: 1.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, pitch: 7.62 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Larger pitch for increased voltage requirements
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Height | 17.3 mm | |
| Grid | 7.62 mm | |
| Pin number | 3 pole | |
| Connection | screw connection | |
| Colour | green | |
| Rated current | 17.5 A | |
| Cable cross-section | 0.14-1.5 mm² | |
| Width | 22.86 mm | |
| Rated voltage | 630 V | |
| AWG cross-section | AWG 26-16 |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
