1717020 | Phoenix Contact
PCB terminal, 2 pole, pitch 7.5 mm, AWG 26-16, 17.5 A, screw connection, green, 1717020
Order No.: 63P0338
EAN: 4017918024253
MPN:
1717020
GMKDS 1,5/ 2
Unit Price (€ / pc.)
1.2019 € *
Available: 28 pcs.
Leadtime: 2 Weeks **

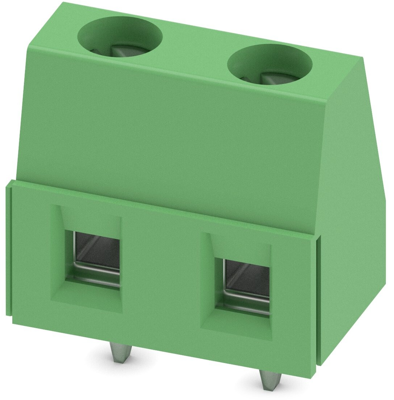

PCB terminal, 1717020, Phoenix Contact
PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 630 V, nominal cross section: 1.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 7.5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Larger pitch for increased voltage requirements
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-16 | |
| Width | 15 mm | |
| Colour | green | |
| Height | 17.3 mm | |
| Contact distance | RM 7.5 | |
| Cable cross-section | 0.14-1.5 mm² | |
| Rated voltage | 630 V | |
| Rated current | 17.5 A | |
| Pin number | 2 pole | |
| Grid | 7.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
