1714618 | Phoenix Contact

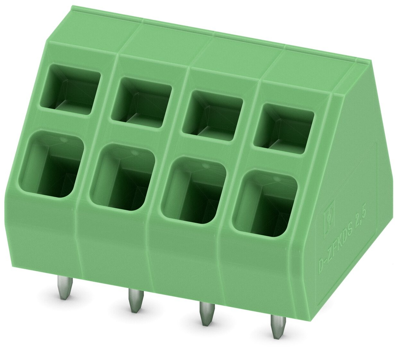

PCB terminal, 4 pole, pitch 5.08 mm, AWG 24-12, 24 A, spring-clamp connection, green, 1714618
Unit Price (€ / pc.)
1.7850 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
10 pcs.
1.6422 €
50 pcs.
1.4994 €
100 pcs.
1.3447 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1714618, Phoenix Contact
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 5.08 mm, connection method: spring-cage connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear double pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.
Features
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Angled connection enables multi-row arrangement on the PCB
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Colour | green | |
| AWG cross-section | AWG 24-12 | |
| Rated current | 24 A | |
| Grid | 5.08 mm | |
| Width | 21.32 mm | |
| Height | 17.5 mm | |
| Cable cross-section | 0.2-4.0 mm² | |
| Pin number | 4 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 400 V |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
