1713888 | Phoenix Contact

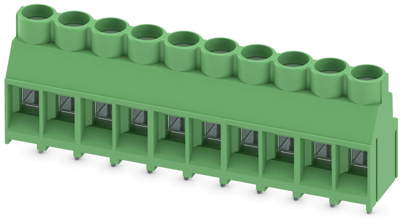

PCB terminal, 10 pole, pitch 6.35 mm, AWG 24-10, 32 A, screw connection, green, 1713888
Unit Price (€ / pc.)
5.8905 € *
Standard delivery time from the manufacturer is: 3 Weeks
PCB terminal, 1713888, Phoenix Contact
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, pitch: 6.35 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5.1 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 6.35 mm | |
| Pin number | 10 pole | |
| Height | 26.6 mm | |
| Colour | green | |
| Rated current | 32 A | |
| Cable cross-section | 0.2-6.0 mm² | |
| Connection | screw connection | |
| Assembly | THT | |
| AWG cross-section | AWG 24-10 | |
| Rated voltage | 630 V | |
| Width | 63.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
