1709432 | Phoenix Contact

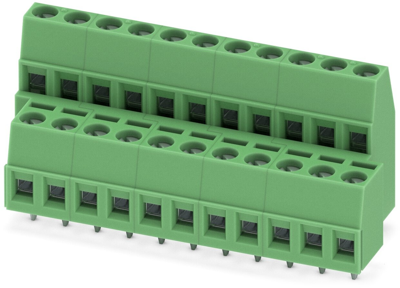

PCB terminal, 22 pole, pitch 5.08 mm, AWG 26-14, 17.5 A, screw connection, green, 1709432
Unit Price (€ / pc.)
8.5204 € *
Standard delivery time from the manufacturer is: 8 Weeks
PCB terminal, 1709432, Phoenix Contact
PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 22, number of rows: 2, number of positions per row: 11, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Conductor connection on several levels enables higher contact density
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26-14 | |
| Rated current | 17.5 A | |
| Height | 29.5 mm | |
| Colour | green | |
| Assembly | THT | |
| Width | 58.42 mm | |
| Grid | 5.08 mm | |
| Rated voltage | 400 V | |
| Connection | screw connection | |
| Pin number | 22 pole | |
| Cable cross-section | 0.14-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
