1709231 | Phoenix Contact

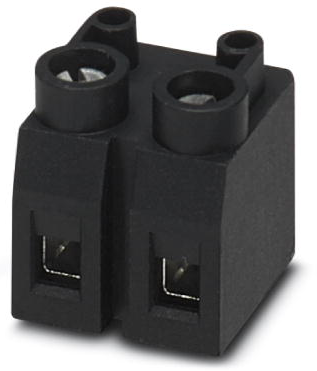

PCB terminal, 2 pole, pitch 7.5 mm, screw connection, black, 1709231
Unit Price (€ / pc.)
0.8092 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
0.81 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8092 €
10 pcs.
0.7259 €
100 pcs.
0.5950 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1709231, Phoenix Contact
PCB terminal block, number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 7.5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: black, solder pin: 3 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Connection | screw connection | |

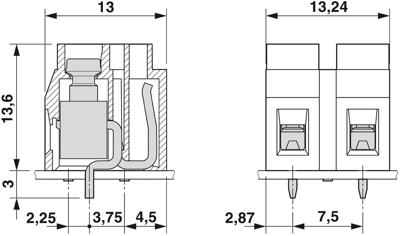

| Width | 13.24 mm | |
| Height | 16.58 mm | |
| Assembly | THT | |
| Pin number | 2 pole | |
| Grid | 7.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
