1707195 | Phoenix Contact

PCB terminal, 2 pole, pitch 5 mm, AWG 26-14, 24 A, screw connection, green, 1707195

Order No.: 64P1619
EAN: 4017918136789
MPN:
1707195
MKDSO 2,5/ 2-R
Series: MKDSO
Phoenix Contact

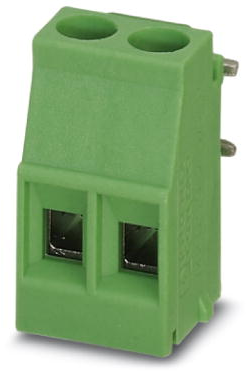

1707195 Phoenix Contact PCB Terminal Blocks
Image may differ
Unit Price (€ / pc.)
1.8564 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.86 € *
*incl. VAT plus shipping costs
**Subject to prior sale
250 pcs.
1.8564 €

PCB terminal, 1707195, Phoenix Contact

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 5 mm, connection method: screw connection with tension sleeve, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • PCB terminal block is orthogonal to the PCB
  • Internationally recognized and proven screw connection
Technical specifications
Connection screw connection
AWG cross-section AWG 26-14
Width 10.95 mm
Colour green
Height 18.05 mm
Cable cross-section 0.14-2.5 mm²
Rated voltage 400 V
Rated current 24 A
Pin number 2 pole
Grid 5 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
