1707111 | Phoenix Contact

PCB terminal, 10 pole, pitch 7.62 mm, AWG 26-16, 16 A, screw connection, green, 1707111

Order No.: 63P0382
EAN: 4017918023447
MPN:
1707111
GMKDSN 1,5/10-7,62
Series: GMKDSN

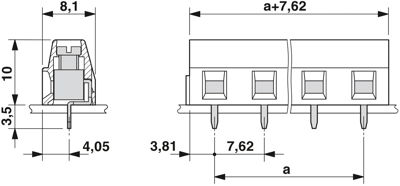

1707111 Phoenix Contact PCB Terminal Blocks Image 1

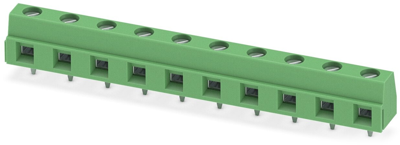

1707111 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
5.8667 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.87 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8667 €
10 pcs.
5.3907 €
50 pcs.
4.9147 €
100 pcs.
4.4149 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1707111, Phoenix Contact

PCB terminal block, nominal current: 16 A, rated voltage (III/2): 630 V, nominal cross section: 1.5 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, pitch: 7.62 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Extremely small design for the respective conductor cross section
  • The latching on the side enables various numbers of positions to be combined
  • Larger pitch for increased voltage requirements
Technical specifications
Filter Property Value
Grid 7.62 mm
Connection screw connection
Height 13.5 mm
Assembly THT
Rated current 16 A
Colour green
Rated voltage 630 V
Cable cross-section 0.14-1.5 mm²
AWG cross-section AWG 26-16
Pin number 10 pole
Width 76.2 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
