1707085 | Phoenix Contact

PCB terminal, 8 pole, pitch 7.62 mm, AWG 26-16, 16 A, screw connection, green, 1707085

Order No.: 63P0380
EAN: 4017918023423
MPN:
1707085
GMKDSN 1,5/ 8-7,62
Series: GMKDSN

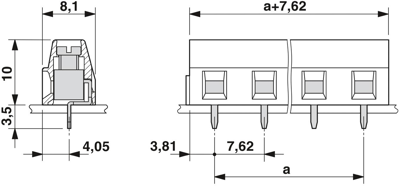

1707085 Phoenix Contact PCB Terminal Blocks Image 1

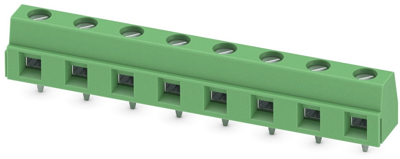

1707085 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
5.0218 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
5.02 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0218 €
10 pcs.
4.5220 €
100 pcs.
3.8437 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1707085, Phoenix Contact

PCB terminal block, nominal current: 16 A, rated voltage (III/2): 630 V, nominal cross section: 1.5 mm², number of potentials: 8, number of rows: 1, number of positions per row: 8, pitch: 7.62 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Extremely small design for the respective conductor cross section
  • The latching on the side enables various numbers of positions to be combined
  • Larger pitch for increased voltage requirements
Technical specifications
Filter Property Value
Colour green
Width 60.96 mm
Cable cross-section 0.14-1.5 mm²
AWG cross-section AWG 26-16
Pin number 8 pole
Connection screw connection
Height 13.5 mm
Rated voltage 630 V
Rated current 16 A
Grid 7.62 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
