1707043 | Phoenix Contact

PCB terminal, 4 pole, pitch 7.62 mm, AWG 26-16, 16 A, screw connection, green, 1707043

Order No.: 63P0376
EAN: 4017918023386
MPN:
1707043
GMKDSN 1,5/ 4-7,62
Series: GMKDSN

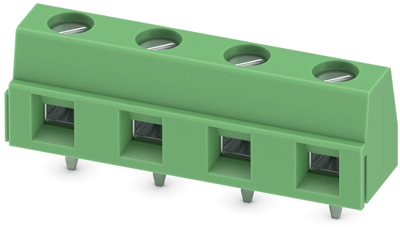

1707043 Phoenix Contact PCB Terminal Blocks Image 1

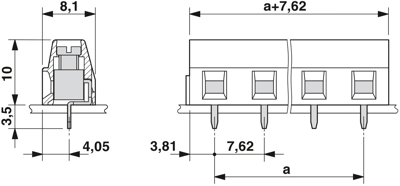

1707043 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.7965 € *
Available: 60 pcs.
Available in 10 days: 2,220 pcs. - if ordered today
Total Price:
2.80 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7965 €
10 pcs.
2.5228 €
100 pcs.
2.1420 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1707043, Phoenix Contact

PCB terminal block, nominal current: 16 A, rated voltage (III/2): 630 V, nominal cross section: 1.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 7.62 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Extremely small design for the respective conductor cross section
  • The latching on the side enables various numbers of positions to be combined
  • Larger pitch for increased voltage requirements
Technical specifications
Filter Property Value
AWG cross-section AWG 26-16
Height 13.5 mm
Grid 7.62 mm
Rated voltage 630 V
Pin number 4 pole
Cable cross-section 0.14-1.5 mm²
Colour green
Rated current 16 A
Connection screw connection
Assembly THT
Width 30.48 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
