1706251 | Phoenix Contact
PCB terminal, 10 pole, pitch 3.81 mm, AWG 26-22, 5 A, cutting connection, green, 1706251
Order No.: 63P1245
EAN: 4017918116750
MPN:
1706251
IDC 0,3/10-3,81
Unit Price (€ / pc.)
3.8080 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
3.81 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8080 €
10 pcs.
3.4272 €
100 pcs.
2.9155 €
*incl. VAT plus shipping costs
**Subject to prior sale

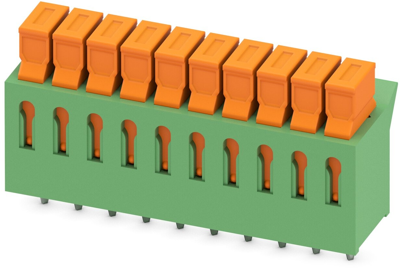

PCB terminal, 1706251, Phoenix Contact

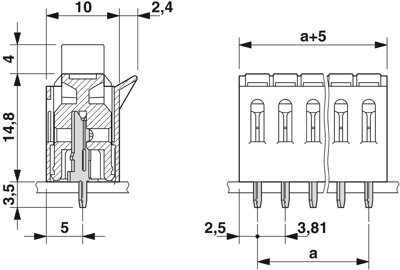

PCB terminal block, nominal current: 5 A, rated voltage (III/2): 160 V, nominal cross section: 0.34 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, pitch: 3.81 mm, connection method: displacement connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.4 mm, number of solder pins per potential: 1.
Features
- Connection without conductor pretreatment for huge time savings
- Intuitive use through colour coded actuation lever
Technical specifications
| Connection | cutting connection | |
| AWG cross-section | AWG 26-22 | |
| Width | 39.29 mm | |
| Colour | green | |
| Height | 22.2 mm | |
| Cable cross-section | 0.13-0.34 mm² | |
| Rated voltage | 160 V | |
| Rated current | 5 A | |
| Pin number | 10 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
