1705751 | Phoenix Contact
PCB terminal, 3 pole, pitch 6.35 mm, AWG 20-10, 32 A, screw connection, green, 1705751
Unit Price (€ / pc.)
6.6759 € *
Available in 5 Days: 5 pcs. - if ordered today

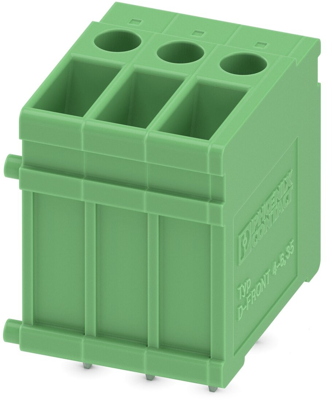

PCB terminal, 1705751, Phoenix Contact
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 320 V, nominal cross section: 4 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, pitch: 6.35 mm, connection method: front screw connection, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 5 mm, number of solder pins per potential: 2.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Operation and conductor connection from one direction enable integration into front of device
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-10 | |
| Colour | green | |
| Pin number | 3 pole | |
| Grid | 6.35 mm | |
| Assembly | THT | |
| Rated voltage | 320 V | |
| Rated current | 32 A | |
| Connection | screw connection | |
| Cable cross-section | 0.5-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | BG |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
