1705647 | Phoenix Contact
PCB terminal, 12 pole, pitch 3.81 mm, AWG 26-16, 8 A, screw connection, green, 1705647
Unit Price (€ / pc.)
6.5331 € *
Available in 10 days: 46 pcs. - if ordered today

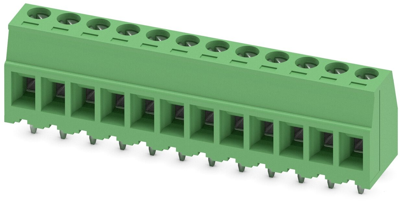

PCB terminal, 1705647, Phoenix Contact
PCB terminal block, nominal current: 8 A, rated voltage (III/2): 320 V, nominal cross section: 1.5 mm², number of potentials: 12, number of rows: 1, number of positions per row: 12, pitch: 3.81 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 2.7 mm, number of solder pins per potential: 2.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 12 pole | |
| Rated voltage | 320 V | |
| Connection | screw connection | |
| Colour | green | |
| Grid | 3.81 mm | |
| AWG cross-section | AWG 26-16 | |
| Cable cross-section | 0.14-1.5 mm² | |
| Assembly | THT | |
| Height | 15.3 mm | |
| Width | 46.81 mm | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BG |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
