1705016 | Phoenix Contact

PCB terminal, 1 pole, pitch 5 mm, AWG 24-12, 24 A, screw connection, green, 1705016

Order No.: 63P1673
EAN: 4017918023218
MPN:
1705016
KDS 2,5
Series: KDS

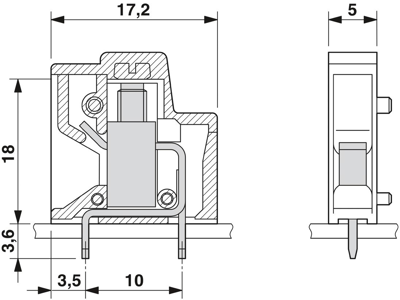

1705016 Phoenix Contact PCB Terminal Blocks Image 1

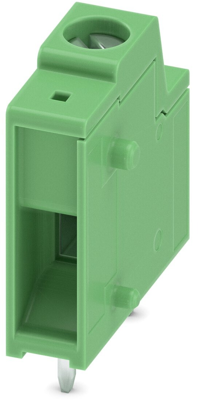

1705016 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.6422 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1.64 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6422 €
10 pcs.
1.5113 €
50 pcs.
1.3685 €
100 pcs.
1.2376 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1705016, Phoenix Contact

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, pitch: 5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.6 mm, number of solder pins per potential: 2.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Quick and convenient testing using integrated test option
  • Two solder pins reduce the mechanical strain on the soldering spots
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Filter Property Value
Grid 5 mm
Connection screw connection
Width 5 mm
Rated voltage 400 V
AWG cross-section AWG 24-12
Rated current 24 A
Colour green
Pin number 1 pole
Height 18 mm
Cable cross-section 0.2-4.0 mm²
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
