1704062 | Phoenix Contact

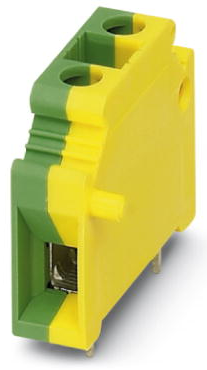

PCB terminal, 1 pole, pitch 10 mm, AWG 20-6, 76 A, screw connection, green, 1704062
Order No.: 63P1700
EAN: 4017918023195
MPN:
1704062
KDS10-PE/SO
Unit Price (€ / pc.)
3.5819 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
PCB terminal, 1704062, Phoenix Contact
PCB terminal block, nominal current: 76 A, rated voltage (III/2): 320 V, nominal cross section: 10 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, pitch: 10 mm, connection method: screw connection with tension sleeve, conductor/PCB connection direction: 0 °, pin layout: linear pinning, solder pin: 4.3 mm, number of solder pins per potential: 4.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Potentials can be easily looped through with additional connection to the PCB
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 20-6 | |
| Width | 10 mm | |
| Colour | green | |
| Height | 33.3 mm | |
| Cable cross-section | 0.5-16 mm² | |
| Rated voltage | 320 V | |
| Rated current | 76 A | |
| Pin number | 1 pole | |
| Grid | 10 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
