1704004 | Phoenix Contact

PCB terminal, 1 pole, pitch 5.08 mm, AWG 24-12, 24 A, screw connection, green, 1704004

Order No.: 63P1676
EAN: 4017918023157
MPN:
1704004
KDS 3
Series: KDS
1704004 Phoenix Contact PCB Terminal Blocks

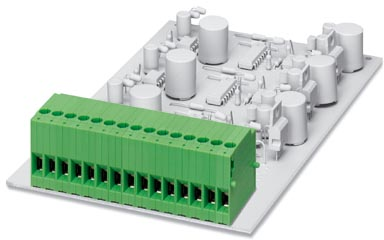

Image may differ
Unit Price (€ / pc.)
2.3562 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
2.36 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3562 €
10 pcs.
2.1539 €
50 pcs.
1.9635 €
100 pcs.
1.7731 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1704004, Phoenix Contact

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Quick and convenient testing using integrated test option
  • Two solder pins reduce the mechanical strain on the soldering spots
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Filter Property Value
Rated current 24 A
Colour green
Width 5.08 mm
Connection screw connection
Height 28.5 mm
AWG cross-section AWG 24-12
Grid 5.08 mm
Rated voltage 400 V
Pin number 1 pole
Cable cross-section 0.2-4.0 mm²
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
