1701509 | Phoenix Contact

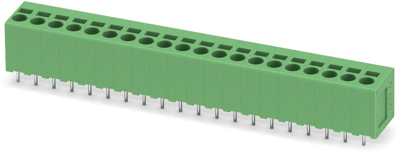

PCB terminal, 20 pole, pitch 5 mm, AWG 24-12, 24 A, spring-clamp connection, green, 1701509
Unit Price (€ / pc.)
6.6997 € *
Standard delivery time from the manufacturer is: 5 Weeks
PCB terminal, 1701509, Phoenix Contact
PCB terminal block, rated current: 24 A, rated voltage (III/2): 400 V, rated cross section: 2.5 mm², grid dimension: 5 mm, number of poles: 20, connection type: push-in spring connection, mounting: wave soldering, connection direction conductor/board: 90 °, color: green, pin layout: linear double pinning, pin length: 2.5 mm.
Features
- Defined contact force ensures that contact remains stable over the long term
- Operation and conductor connection from one direction enable integration into front of device
- Double solder pins reduce mechanical stress on solder joints
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Connection | spring-clamp connection | |
| Height | 16.9 mm | |
| Assembly | THT | |
| Rated current | 24 A | |
| Colour | green | |
| Rated voltage | 400 V | |
| Cable cross-section | 0.2-4.0 mm² | |
| AWG cross-section | AWG 24-12 | |
| Pin number | 20 pole | |
| Width | 101.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
